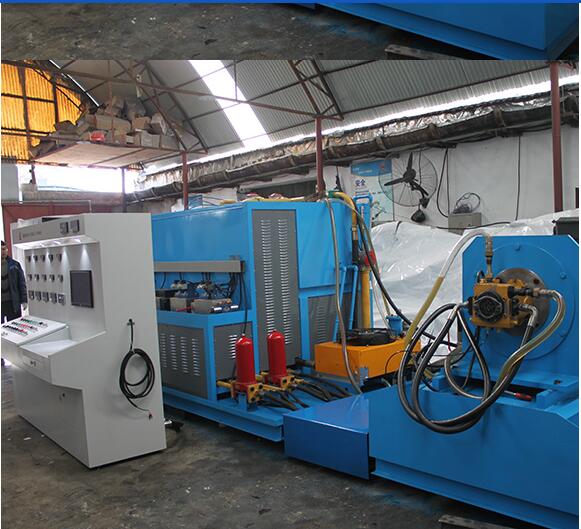

Hydraulic Pump Test Bench

Function configuration and parameters of test bench:

the hydraulic comprehensive test bench can test the following components:

Mainly test: single and double hydraulic pumps; Open and close hydraulic pumps; Low speed hydraulic motor loading test; High speed hydraulic motor (pump working condition test); Ultra high pressure and low flow test.

Driving mode: electric motor output power 160kW; Speed 0-2000r / min

Loading mode: Pump (motor) loading: dual way loading of proportional relief valve, maximum 45MPa

oil supply mode: two way low pressure oil pump supply `oil: 300 L / min (0-3 MPa) or Self-priming oil supply;

High pressure oil supply: 16L / min 0-30mpa

Data display mode: mechanical meter (pressure) digital display instrument (flow, speed, current, voltage) PLC display 19 inch screen

1) Flow and pressure: digital display L / min, MPa;

3) The liquid level is directly displayed by the liquid level meter;

4) If the filter element is blocked and the filter is replaced, the red light will give an alarm;

5) Speed and temperature are displayed by digital display meter.

working medium: isovg46 hydraulic oil

Tank volume: 1000L, actual refueling 900l-950l

main pump platform: 2500mm long × Width 2100mm × Height 2000mm

Motor driving table: 2100mm long × 1550mm wide × 1600mm high

Control counter: 2030mm long × Width 800mm × 1800mm high

Main configuration

Yizhi has a high-quality and experienced technical R&D team. With profound professional knowledge and an innovative spirit, they constantly promote the optimization and upgrading of products. We are committed to providing customers with high-quality, high-performance and high-precision hydraulic pump test benches to meet the diverse needs of different industries and customers.

During the production process, the company strictly follows international quality standards and advanced production processes. From raw material procurement to finished product delivery, every link undergoes strict quality control to ensure that each piece of equipment has excellent stability and reliability.

The company focuses on technological innovation and continuously invests a large amount of resources in the research and development of new technologies and new processes to maintain its leading position in the industry. At the same time, we also actively cooperate with well-known enterprises and research institutions at home and abroad to jointly explore the cutting-edge technologies in the field of hydraulic pump testing.

Shandong Yizhi Machinery Equipment Co., Ltd. always adheres to the business philosophy of "customer-centered, quality for survival, innovation for development", and provides customers with all-round high-quality services. Whether it is pre-sale technical consultation, scheme design, or after-sale installation and commissioning, training and maintenance, we strive to be perfect and let customers have no worries.

In the future, we will continue to uphold the spirit of professionalism, concentration and dedication, constantly enhance our own strength, contribute to the development of hydraulic pump testing technology, and strive to become a leading enterprise in the global hydraulic pump test bench industry.
