Hydraulic Pump / Motor Test Bench for repairing construction Equipment

I. structural characteristics.

1.

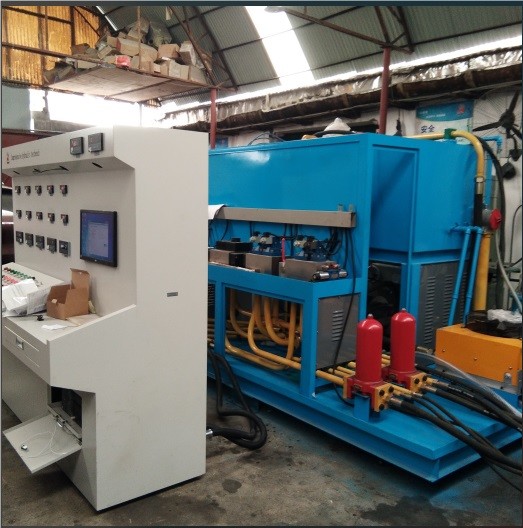

The electric motor is the driving system of the whole test bench. This test bench can be divided three parts: electric motor platform, oil tank platform, control cabinet. The structure has characteristics of small size, light weight, compact structure, and easy installation, etc.

2.

It uses the design of hydraulic integrated block, so that the system has less leakage compact structure, and convenience for assembly and disassembly

3, The output oil hoses are arranged orderly, clear and easy to operate and install.

III Main parameters

• Dimension and main parameters

Weight: 3 ton

Outside dimension:

The driving platform: 1400*2100*1600mm

The main oil tank and the valve control table: 2700*2050*2030mm

Driving power: 110KW

Auxiliary motor: 22KW low-pressure oil-supply pump is vane pump, 45V-75A

Auxiliary motor: 22KW, high-pressure oil-supply pump is A2F23/31

Maximum flow: 500L+500L

2. the main configuration and parameters of the test bench

Driving mode: by electric motor

Speed: 4 pole motor, 0—3000r/min ( using under 2300r/min is advised)

Loading mode: computer edition; both manual and automatic mode to load pressure,

Mode of oil supply: self absorbing and by force

Mode of display: digital meter and computer display

Mode of operation: manual and automatic operation

3 working medium: ISOVG46 hydraulic oil

4. Volume of oil tank: designed 1250 L , 1200L in reality

5. The requirement of the cleanness of the oil:

GB/T14039 19/16(NAS10 grade)

IV: Installation instruction

1. After the arrival of this hydraulic system, check if everything is is within the requirements. if the test bench meet the designing request, and if there is any damage. Otherwise, contact the manufacturer directly.

• When each part of the hydraulic system is installed, make sure that the cover or wrap of every outside oil port do not fall off before matching hoses for this equipment, to avoid any pollution of this hydraulic system.

• After this hydraulic system is transported to the position for installation, fixed it firmly, to avoid any influence to the performance of this hydraulic system.

• After every part of this hydraulic system is at their

right position, match hoses for the hydraulic system according to the hydraulic operational drawing.

5.When doing the connection work, do not miss or damage any seal,

6. After finishing the installation, please connect the electric components according the wiring diagram.

• Commissioning Instruction
  • After the installation, of this hydraulic system, according to the hydraulic principle diagram, circuit wiring diagram, check if every part of the hydraulic system is properly installed, the pipeline is properly connected, electrical wiring is correct connected, otherwise timely solve.

• Unscrew the air filter cover, add hydraulic oil to the tank to the maximum limit of the liquid level gauge with filtering machine whose filtering accuracy is not below 20 um through the air filter, and then restore the air filter.

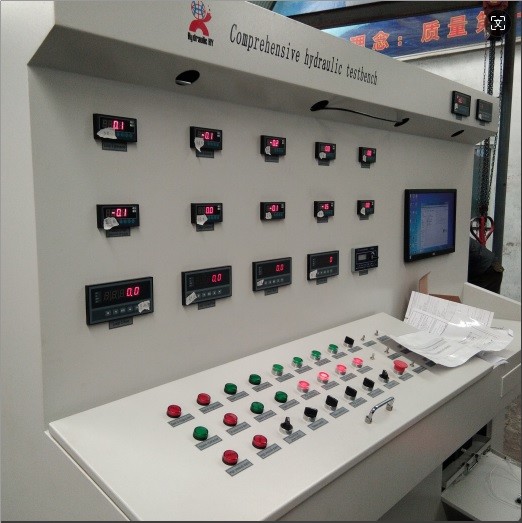

• Turn all the adjustment knobs on the control table counterclockwise to Zero.

• Button the electric motor, if it can not start, adjust the circuit again. Pay attention. to the rotation direction.
