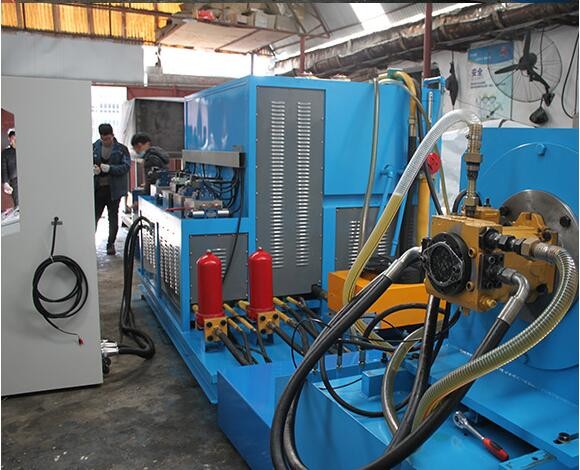

Hydraulic Motor / Pump Test Bench with CE C ertificate
Electric driving motor: 75kw--160kw
Pressure: 31.5Mpa
Speed: 0-1500r/min
Simens PLC
HP Printer
The hydraulic comprehensive test bench comes with a digital display
mode that shows the speed, flow, pressure, and torque of the
hydraulic components being tested. This makes it easy to monitor
the performance of the components during the testing process.
The hydraulic test bench is capable of testing a wide range of
hydraulic components, including single and double hydraulic pumps,
open and closed hydraulic pumps, axial high-speed hydraulic motors,
and more. This makes it a versatile tool that can be used in a
variety of applications.
The maximum pressure that the hydraulic test bench can handle is
35MP, making it suitable for testing high-pressure hydraulic
components. The hydraulic test bench has a power output of
160KW+22KW+2.2KW+0.8KW+0.8KW+0.75=187KW, which ensures that it can
handle even the most demanding testing requirements.
The hydraulic test bench comes with a 1-year warranty, which
provides peace of mind to users that they are investing in a
high-quality testing tool that is built to last.
Features:
- Product Name: hydraulic test bench
- Purpose: For Repairing Hydraulic Pumps And Motors
- Emergency Stop Protection: Yes
- Printing Of Test Report: Yes
- Oil Supply: Self Priming And Forced Oil Supply
- Power: 160KW+22KW+2.2KW+0.8KW+0.8KW+0.75=187KW
The hydraulic test bench is also known as a Hydraulic Test Platform
or Hydraulic Test Table.
Technical Parameters:
| Equipment Power Requirement: | AC380V 400A |
| Oil Supply: | Self Priming And Forced Oil Supply |
| Flow: | ≦ 500L/min |
| Pressure Loading: | 31 Mpa --42Mpa |
| Cooling Method: | Air-cooled Radiator |
| Maximum Pressure: | 35MP |
| Purpose: | For Repairing Hydraulic Pumps And Motors |
| Display Mode: | Digital Display Of Speed, Flow, Pressure, Torque |
| Emergency Stop Protection: | Yes |
| Testing Method: | Hydraulic pump test: The main driving motor drives the tested pump
filter to extract medium from the hydraulic oil tank to complete
the working action. The pressure load is increased or decreased
through the proportional relief valve at the working oil port of
the tested pump. (Closed circuit pump requires auxiliary oil supply
pump to be turned on) Axial high-speed hydraulic motor test:
Conduct pump condition test with the same pump (auxiliary oil
supply pump must be turned on) High speed hydraulic motor with
balance valve function: The tested motor is subjected to shaft end
loading test by the loading motor (used as a pump operating
condition at this time). |
Applications:
The YiZhi YST380 hydraulic test bench is a high-quality hydraulic
test tool designed to test hydraulic components such as hydraulic
pumps, motors, valves, cylinders, and more. This hydraulic test
table is manufactured in Shandong Province of China, ensuring
top-quality construction and materials.
The YST380 hydraulic test bench is certified with CE and ISO,
ensuring that it meets international quality and safety standards.
The minimum order quantity for this product is 1 unit, and the
supply ability is 1 unit per 50 days.
The delivery time for the YST380 hydraulic test bench is 50 days,
and it is packaged with a film to ensure its safety during
transportation. The price range for this product is USD
20000--60000, and payment terms are T/T.
The YST380 hydraulic test bench is equipped with an air-cooled
radiator for efficient cooling. The digital display of speed, flow,
pressure, and torque allows for precise testing and measurement of
hydraulic components.
The YST380 hydraulic test bench has a power output of
160KW+22KW+2.2KW+0.8KW+0.8KW+0.75=187KW, making it a powerful and
reliable hydraulic test tool. This hydraulic test bench falls under
the product category of hydraulic test bench and has a maximum
pressure of 35MP.
The YST380 hydraulic test bench is ideal for use in various
industries, including automotive, aerospace, heavy machinery, and
more. It can be used to test a wide range of hydraulic components,
making it a versatile hydraulic test table. Whether you need to
test hydraulic pumps, motors, valves, or cylinders, the YST380
hydraulic test bench is the perfect tool for the job.
Overall, the YST380 hydraulic test bench is a high-quality,
reliable, and efficient hydraulic test tool that is perfect for
various hydraulic testing scenarios. With its top-quality
construction, precise digital display, and powerful output, the
YST380 hydraulic test bench is a must-have for any hydraulic
testing needs.
Support and Services:
The hydraulic test bench product comes with technical support and
services to assist customers with any issues they may encounter.
Our team of experts is available to provide guidance on
installation, operation, and maintenance of the product. We also
offer repair and calibration services to ensure that the product is
functioning properly and accurately. Additionally, we provide
training services for customers who want to learn more about the
product and its applications. Our goal is to ensure that our
customers have a positive experience with our product and are able
to use it to its full potential.
FAQ:
Q: What is the brand name of the hydraulic test bench?
A: The brand name of the hydraulic test bench is YiZhi.
Q: What is the model number of the hydraulic test bench?
A: The model number of the hydraulic test bench is YST380.
Q: Where is the hydraulic test bench made?
A: The hydraulic test bench is made in Shandong Province of China.
Q: What certifications does the hydraulic test bench have?
A: The hydraulic test bench has CE and ISO certifications.
Q: What is the minimum order quantity for the hydraulic test bench?
A: The minimum order quantity for the hydraulic test bench is 1
unit.
Q: What is the supply ability of the hydraulic test bench?
A: The supply ability of the hydraulic test bench is 1 unit per 50
days.
Q: What is the delivery time for the hydraulic test bench?
A: The delivery time for the hydraulic test bench is 50 days.
Q: What are the packaging details for the hydraulic test bench?
A: The packaging details for the hydraulic test bench is film.
Q: What is the price range for the hydraulic test bench?
A: The price range for the hydraulic test bench is USD
20000--60000.
Q: What are the payment terms for the hydraulic test bench?
A: The payment terms for the hydraulic test bench is T/T.
